A 50x50 steel shop layout with lift-bay potential, work zones, and vehicle staging.
This 50x50 metal building layout is designed for auto repair shop. It uses 3 overhead doors at about 14x14 feet, supports up to 4 storage positions, and keeps about 3 positions independently accessible in a practical daily-use plan.

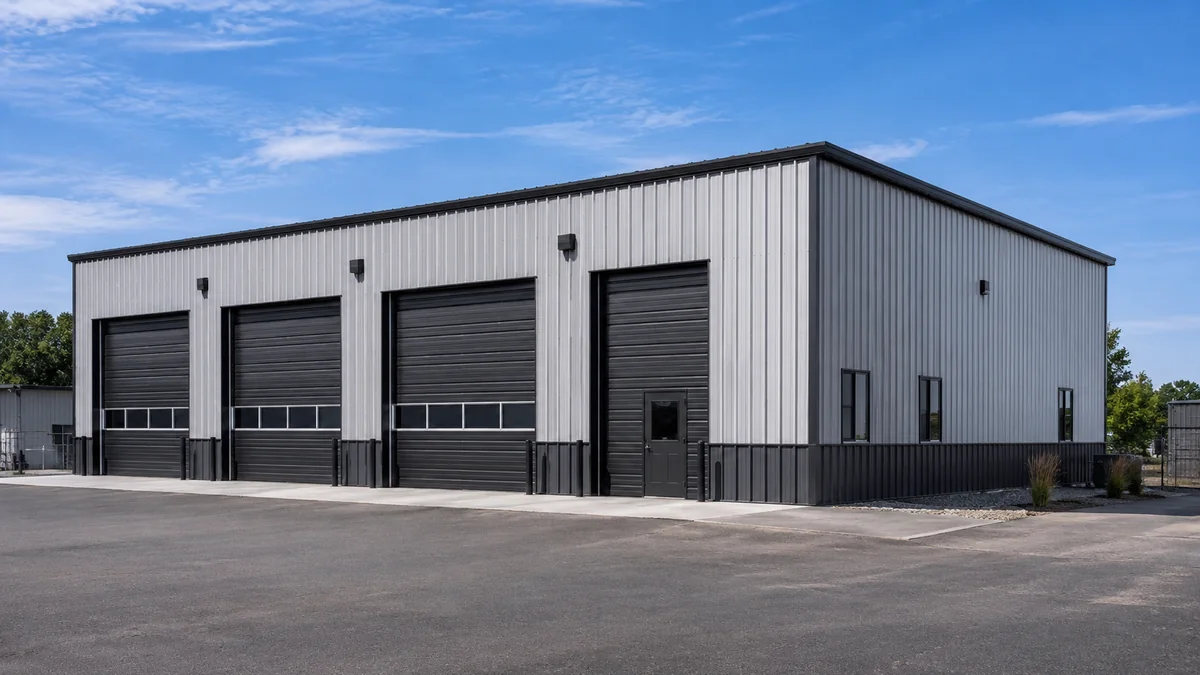

This exterior example helps connect the top-down plan to a real-world metal building. The layout below is about usable space, while the image helps buyers picture scale, door rhythm, apron space, roofline, and how the building may sit on a finished site.
Use case shown: Auto repair, detailing, lifts, tool storage, and customer vehicles.
Planning focus: 2 full-size trucks, 2 SUVs with approximately 3 independently accessible positions.
Visual takeaway: The right building size is not just square footage. Door count, overhead clearance, apron depth, aisle room, and reserved work or storage zones determine whether the space feels efficient after it is built.
Width, length, and eave height.
Front wall vehicle entry.
Maximum estimated parked footprint.
Estimated independently accessible positions.
Suggested operating or center aisle.
Auto repair, detailing, lifts, tool storage, and customer vehicles.
A 50×50 steel shop layout with lift-bay potential, work zones, and vehicle staging.
Use this layout as a starting point. Confirm vehicle dimensions, door openings, clearances, site conditions, building codes, slab design, and final engineered plans before ordering.
This 50x50 steel building layout is designed as a practical starting point for buyers comparing a metal garage kit, metal shop building, vehicle storage building, or flexible work space. The plan is configured around 2 full-size trucks, 2 SUVs, with 3 overhead doors at approximately 14x14 feet on the front wall and an estimated 22 foot operating aisle.
Auto repair, detailing, lifts, tool storage, and customer vehicles. Buyers often evaluate this footprint for a steel garage, metal workshop, equipment shed, vehicle storage building, or a custom metal building kit with room for storage and future upgrades.
Confirm the final vehicle dimensions, mirror clearance, overhead door opening size, local setbacks, slab plan, site access, electrical needs, and whether you want future room for shelves, lifts, a workbench, office, or loft storage. The visualizer is useful for testing alternate doors, access walls, and mixed vehicle layouts before requesting quotes.
This plan is modeled around 2 full-size trucks, 2 SUVs. Actual fit depends on exact vehicle dimensions, door locations, interior columns, storage zones, and the degree of daily access you need.
It can be, particularly when the goal is auto repair shop. Use the plan as a planning baseline, then adjust doors, access wall, workspace, and equipment in the Building Size Visualizer.
This layout uses 3 overhead doors at approximately 14x14 feet. Final door sizing should account for the widest selected vehicle, mirrors, trailers, roof accessories, and how much maneuvering clearance you want.
Yes. Open the layout in the visualizer to change dimensions, doors, height, vehicle mix, access walls, and interior zones before requesting quotes.
A 50x50 metal building can be configured as a garage, shop, RV building, equipment shed, fleet facility, or mixed-use space. For this workshop & hobby, the useful comparison is whether the exterior has enough door openings, safe entry clearance, and apron room to support 2 full-size trucks, 2 SUVs without constant reshuffling.
This layout assumes 3 overhead doors around 14x14 feet on the front wall. In a real quote, verify how those doors affect windows, walk doors, bracing, insulation packages, interior work zones, shelving, and future additions. Too many doors can reduce usable wall storage, while too few doors can make a large building feel difficult to use.
The example image shows the type of finished presence buyers usually want, but the planning decision should also include slab thickness, driveway approach, drainage, snow or wind requirements, lighting, ventilation, electrical needs, and whether the building will be finished as cold storage, a working shop, or a more complete commercial space.
Consider a larger footprint if you need independent daily access for every vehicle, enclosed trailers with tongue clearance, workbenches on more than one wall, lift space, office or bathroom build-out, pallet storage, or enough open floor area to expand later without replacing the building.
SteelBuildingKit uses typical vehicle and equipment footprints, stated door dimensions, practical clearance allowances, interior zones, and the selected access wall to model a starting layout. Capacity is an estimate, not an engineered drawing or construction specification.
This plan can fit more units in storage-first mode than it can serve with independent daily access. Compare the alternate layouts before deciding which tradeoff you actually want.
Your selected layout details are included automatically, so providers start with the building size, door plan, capacity, access style, and vehicle or equipment use already documented.
